funcmakemap(t *maptype, hint int, h *hmap) *hmap { mem, overflow := math.MulUintptr(uintptr(hint), t.bucket.size) if overflow || mem > maxAlloc { hint = 0 }
if h == nil { h = new(hmap) } h.hash0 = fastrand()
B := uint8(0) for overLoadFactor(hint, B) { B++ } h.B = B
if h.B != 0 { var nextOverflow *bmap h.buckets, nextOverflow = makeBucketArray(t, h.B, nil) if nextOverflow != nil { h.extra = new(mapextra) h.extra.nextOverflow = nextOverflow } }
return

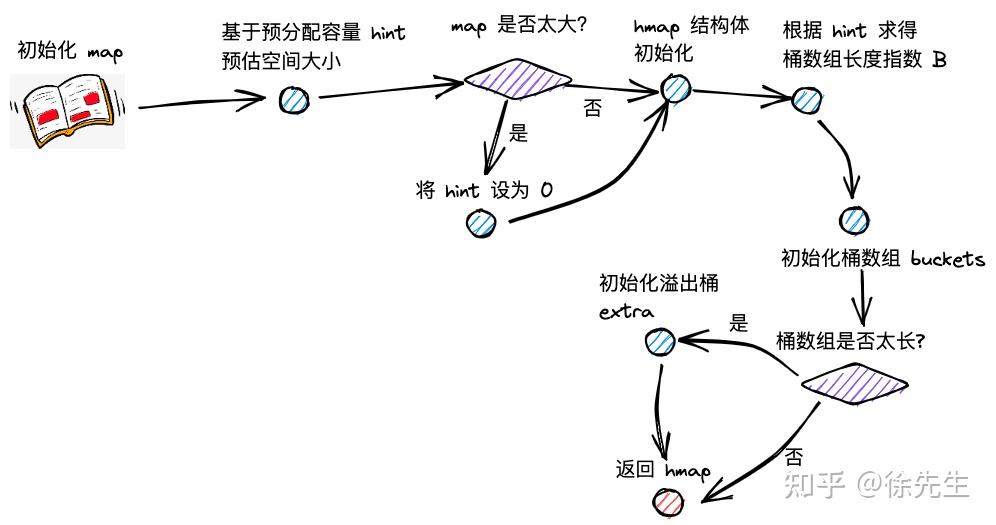

（1）hint 为 map 拟分配的容量；在分配前，会提前对拟分配的内存大小进行判断，倘若超限，会将 hint 置为零；
1 2 3 4
mem, overflow := math.MulUintptr(uintptr(hint), t.bucket.size) if overflow || mem > maxAlloc { hint = 0 }
（2）通过 new 方法初始化 hmap；
1 2 3
if h == nil { h = new(hmap) }
（3）调用 fastrand，构造 hash 因子：hmap.hash0；
1
h.hash0 = fastrand()
（4）大致上基于 log2(B) >= hint 的思路（具体见 4.2 小节 overLoadFactor 方法的介绍），计算桶数组的容量 B；
1 2 3 4 5
B := uint8(0) for overLoadFactor(hint, B) { B++ } h.B =
（5）调用 makeBucketArray 方法，初始化桶数组 hmap.buckets；
1 2
var nextOverflow *bmap h.buckets, nextOverflow = makeBucketArray(t, h.B, n

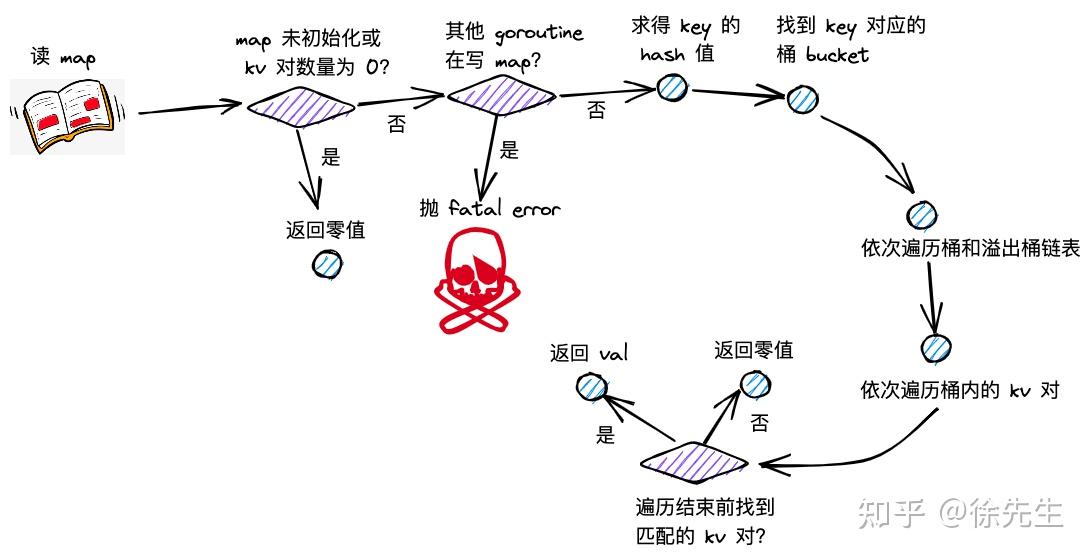

funcmapaccess1(t *maptype, h *hmap, key unsafe.Pointer) unsafe.Pointer { if h == nil || h.count == 0 { return unsafe.Pointer(&zeroVal[0]) } if h.flags&hashWriting != 0 { fatal("concurrent map read and map write") } hash := t.hasher(key, uintptr(h.hash0)) m := bucketMask(h.B) b := (*bmap)(add(h.buckets, (hash&m)*uintptr(t.bucketsize))) if c := h.oldbuckets; c != nil { if !h.sameSizeGrow() { m >>= 1 } oldb := (*bmap)(add(c, (hash&m)*uintptr(t.bucketsize))) if !evacuated(oldb) { b = oldb } } top := tophash(hash) bucketloop: for ; b != nil; b = b.overflow(t) { for i := uintptr(0); i < bucketCnt; i++ { if b.tophash[i] != top { if b.tophash[i] == emptyRest { break bucketloop } continue } k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize)) if t.indirectkey() { k = *((*unsafe.Pointer)(k)) } if t.key.equal(key, k) { e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize)) if t.indirectelem() { e = *((*unsafe.Pointer)(e)) } return e } } } return unsafe.Pointer(&zeroVal[0]) }
if c := h.oldbuckets; c != nil { if !h.sameSizeGrow() { m >>=1 } oldb := (*bmap)(add(c, (hash&m)*uintptr(t.bucketsize))) if !evacuated(oldb) { b = oldb } }
在取老桶前，会先判断 map 的扩容流程是否是增量扩容，倘若是的话，说明老桶数组的长度是新桶数组的一半，需要将桶长度值 m 除以 2.

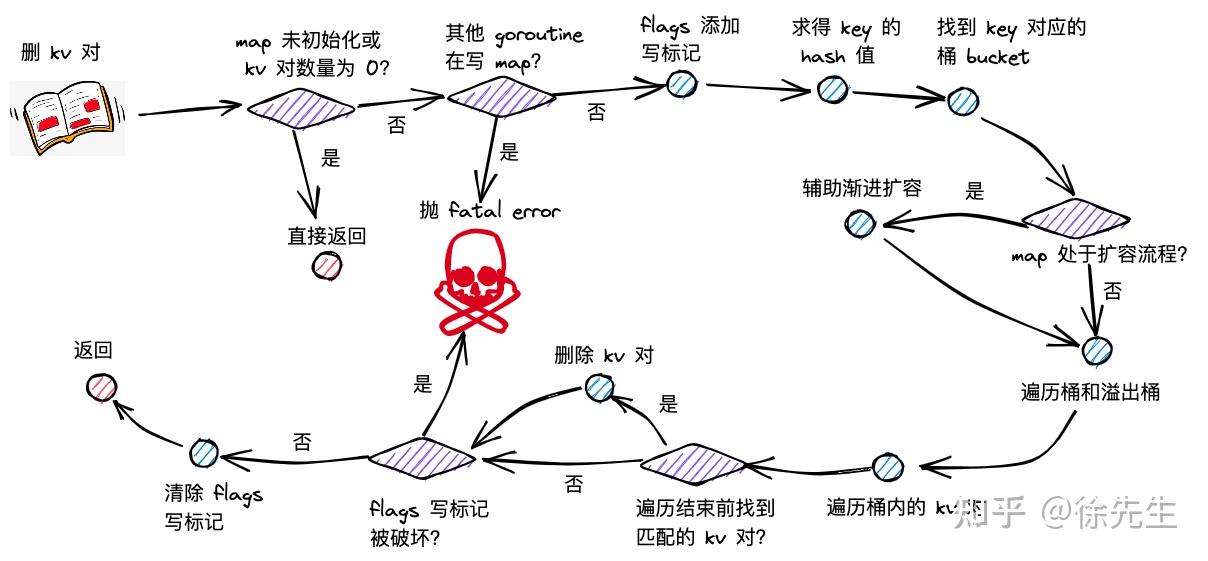

func mapdelete(t *maptype, h *hmap, key unsafe.Pointer) { if h == nil || h.count == 0 { return } if h.flags&hashWriting != 0 { fatal("concurrent map writes") }
hash := t.hasher(key, uintptr(h.hash0))
h.flags ^= hashWriting
bucket := hash & bucketMask(h.B) if h.growing() { growWork(t, h, bucket) } b := (*bmap)(add(h.buckets, bucket*uintptr(t.bucketsize))) bOrig := b top := tophash(hash) search: for ; b != nil; b = b.overflow(t) { for i := uintptr(0); i < bucketCnt; i++ { if b.tophash[i] != top { if b.tophash[i] == emptyRest { break search } continue } k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize)) k2 := k if t.indirectkey() { k2 = *((*unsafe.Pointer)(k2)) } if !t.key.equal(key, k2) { continue } // Only clear key if there are pointers in it. if t.indirectkey() { *(*unsafe.Pointer)(k) = nil } else if t.key.ptrdata != 0 { memclrHasPointers(k, t.key.size) } e := add(unsafe.Pointer(b), dataOffset+bucketCnt*uintptr(t.keysize)+i*uintptr(t.elemsize)) if t.indirectelem() { *(*unsafe.Pointer)(e) = nil } else if t.elem.ptrdata != 0 { memclrHasPointers(e, t.elem.size) } else { memclrNoHeapPointers(e, t.elem.size) } b.tophash[i] = emptyOne if i == bucketCnt-1 { if b.overflow(t) != nil && b.overflow(t).tophash[0] != emptyRest { goto notLast } } else { if b.tophash[i+1] != emptyRest { goto notLast } } for { b.tophash[i] = emptyRest if i == 0 { if b == bOrig { break } c := b for b = bOrig; b.overflow(t) != c; b = b.overflow(t) { } i = bucketCnt - 1 } else { i-- } if b.tophash[i] != emptyOne { break } } notLast: h.count-- if h.count == 0 { h.hash0 = fastrand() } break search } }
k := add(unsafe.Pointer(b), dataOffset+i*uintptr(t.keysize)) k2 := k if t.indirectkey() { k2 = *((*unsafe.Pointer)(k2)) } if !t.key.equal(key, k2) { continue }
for { b.tophash[i] = emptyRest if i == 0 { if b == bOrig { break } c := b for b = bOrig; b.overflow(t) != c; b = b.overflow(t) { } i = bucketCnt - 1 } else { i-- } if b.tophash[i] != emptyOne { break } }
// decide wheretostart var r uintptr r = uintptr(fastrand()) it.startBucket = r & bucketMask(h.B) it.offset = uint8(r >> h.B & (bucketCnt - 1))
// iterator state it.bucket = it.startBucket
// Remember we have an iterator. // Can run concurrentlywith another mapiterinit(). ifold := h.flags; old&(iterator|oldIterator) != iterator|oldIterator { atomic.Or8(&h.flags, iterator|oldIterator) }
mapiternext(

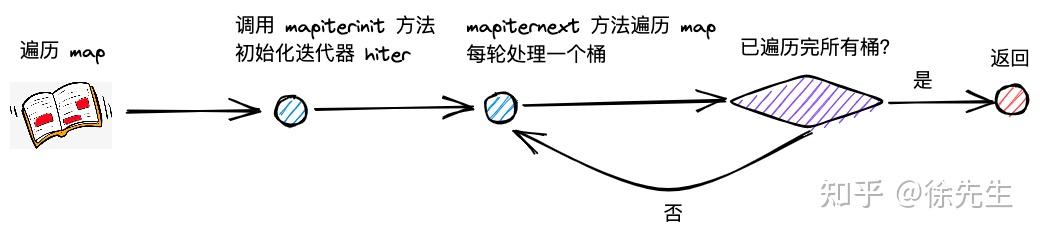

（1）通过取随机数的方式，决定遍历时的起始桶，以及桶中起始 key-value 对的位置：
1 2 3 4 5 6 7 8 9 10
var r uintptr r = uintptr(fastrand()) it.startBucket = r & bucketMask(h.B) it.offset = uint8(r >> h.B & (bucketCnt - 1))
it.key = k if t.indirectelem() { e = *((*unsafe.Pointer)(e)) } it.elem = e } else { rk, re := mapaccessK(t, h, k) if rk == nil { continue // key has been deleted } it.key = rk it.elem = re } it.bucket = bucket if it.bptr != b { // avoid unnecessary write barrier; see issue 14921 it.bptr = b } it.i = i + 1 it.checkBucket = checkBucket return } b = b.overflow(t) i = 0 goto next }
（1）遍历时发现其他 goroutine 在并发写，直接抛出 fatal error：
1 2 3
ifh.flags&hashWriting!= 0 { fatal("concurrent map iteration and map write") }
（2）开启最外圈的循环，依次遍历桶数组中的每个桶链表，通过 next 和 goto next 关键字实现循环代码块；
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
next: ifb == nil { // ... b = (*bmap)(add(it.buckets, bucket*uintptr(t.bucketsize))) // bucket++ if bucket == bucketShift(it.B) { bucket = 0 it.wrapped = true } i = 0 } // ... b = b.overflow(t) // ... goto next }

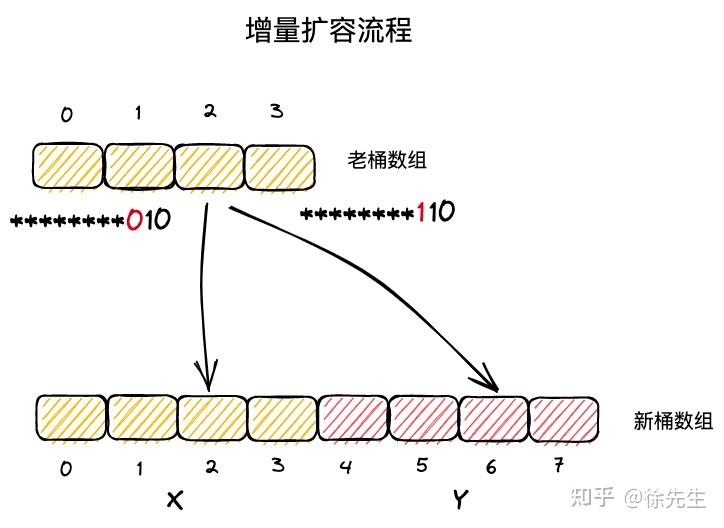

（6）在增量扩容流程中，新桶数组的长度会扩展一位，假定 key 原本从属的桶号为 i，则在新桶数组中从属的桶号只可能是 i （x 区域）或者 i + 老桶数组长度（y 区域）；
（7）当 key 低位 hash 值向左扩展一位的 bit 位为 0，则应该迁往 x 区域的 i 位置；倘若该 bit 位为 1，应该迁往 y 区域对应的 i + 老桶数组长度的位置.

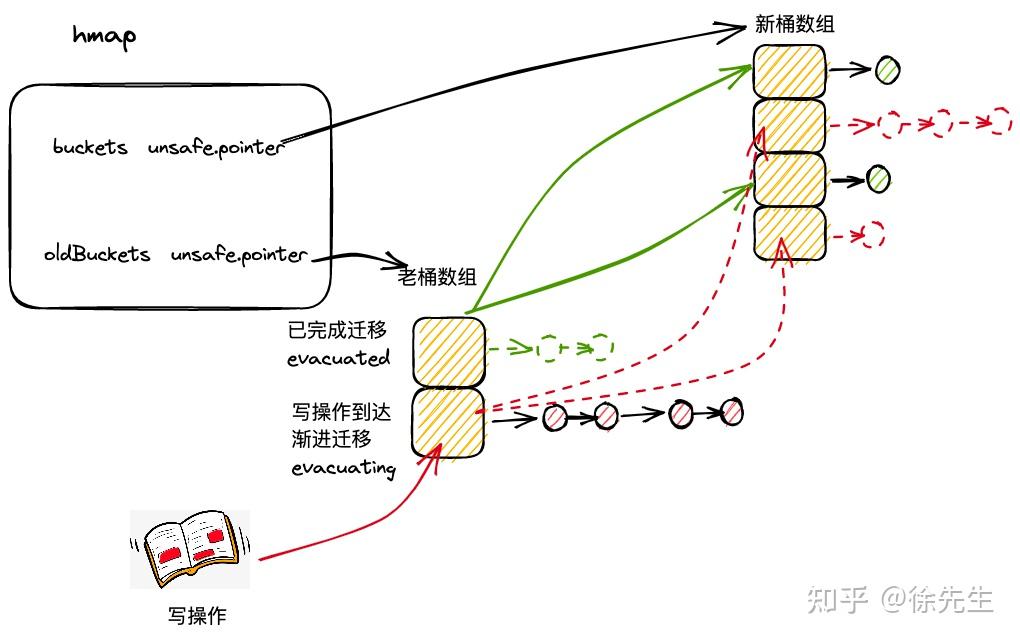

9.5 渐进式扩容
map 采用的是渐进扩容的方式，避免因为一次性的全量数据迁移引发性能抖动.
当每次触发写、删操作时，会为处于扩容流程中的 map 完成两组桶的数据迁移：
（1）一组桶是当前写、删操作所命中的桶；
（2）另一组桶是，当前未迁移的桶中，索引最小的那个桶.
1 2 3 4 5 6 7 8 9 10 11
func growWork(t *maptype, h *hmap, bucket uintptr) { // make sure we evacuate the oldbucket corresponding // to the bucket we're about to use evacuate(t, h, bucket&h.oldbucketmask())
// evacuate one more oldbucket to make progress on growing if h.growing() { evacuate(t, h, h.nevacuate) } }
funcevacuate(t *maptype, h *hmap, oldbucket uintptr) { // 入参中，oldbucket 为当前要迁移的桶在旧桶数组中的索引 // 获取到待迁移桶的内存地址 b b := (*bmap)(add(h.oldbuckets, oldbucket*uintptr(t.bucketsize))) // 获取到旧桶数组的容量 newbit newbit := h.noldbuckets() // evacuated 方法判断出桶 b 是否已经迁移过了，未迁移过，才进入此 if 分支进行迁移处理 if !evacuated(b) { // 通过一个二元数组 xy 指向当前桶可能迁移到的目的桶 // x = xy[0]，代表新桶数组中索引和旧桶数组一致的桶 // y = xy[1]，代表新桶数组中，索引为原索引加上旧桶容量的桶，只在增量扩容中会使用到 var xy [2]evacDst x := &xy[0] x.b = (*bmap)(add(h.buckets, oldbucket*uintptr(t.bucketsize))) x.k = add(unsafe.Pointer(x.b), dataOffset) x.e = add(x.k, bucketCnt*uintptr(t.keysize))
// 只有进入增量扩容的分支，才需要对 y 进行初始化 if !h.sameSizeGrow() { // Only calculate y pointers if we're growing bigger. // Otherwise GC can see bad pointers. y := &xy[1] y.b = (*bmap)(add(h.buckets, (oldbucket+newbit)*uintptr(t.bucketsize))) y.k = add(unsafe.Pointer(y.b), dataOffset) y.e = add(y.k, bucketCnt*uintptr(t.keysize)) }
// 外层 for 循环，遍历桶 b 和对应的溢出桶 for ; b != nil; b = b.overflow(t) { // k,e 分别记录遍历桶时，当前的 key 和 value 的指针 k := add(unsafe.Pointer(b), dataOffset) e := add(k, bucketCnt*uintptr(t.keysize)) // 遍历桶内的 key-value 对 for i := 0; i < bucketCnt; i, k, e = i+1, add(k, uintptr(t.keysize)), add(e, uintptr(t.elemsize)) { top := b.tophash[i] if isEmpty(top) { b.tophash[i] = evacuatedEmpty continue } if top < minTopHash { throw("bad map state") } k2 := k if t.indirectkey() { k2 = *((*unsafe.Pointer)(k2)) } var useY uint8 if !h.sameSizeGrow() { // Compute hash to make our evacuation decision (whether we need // to send this key/elem to bucket x or bucket y). hash := t.hasher(k2, uintptr(h.hash0)) if hash&newbit != 0 { useY = 1 } } b.tophash[i] = evacuatedX + useY // evacuatedX + 1 == evacuatedY dst := &xy[useY] // evacuation destination if dst.i == bucketCnt { dst.b = h.newoverflow(t, dst.b) dst.i = 0 dst.k = add(unsafe.Pointer(dst.b), dataOffset) dst.e = add(dst.k, bucketCnt*uintptr(t.keysize)) } dst.b.tophash[dst.i&(bucketCnt-1)] = top // mask dst.i as an optimization, to avoid a bounds check if t.indirectkey() { *(*unsafe.Pointer)(dst.k) = k2 // copy pointer } else { typedmemmove(t.key, dst.k, k) // copy elem } if t.indirectelem() { *(*unsafe.Pointer)(dst.e) = *(*unsafe.Pointer)(e) } else { typedmemmove(t.elem, dst.e, e) } dst.i++ dst.k = add(dst.k, uintptr(t.keysize)) dst.e = add(dst.e, uintptr(t.elemsize)) } } // Unlink the overflow buckets & clear key/elem to help GC. if h.flags&oldIterator == 0 && t.bucket.ptrdata != 0 { b := add(h.oldbuckets, oldbucket*uintptr(t.bucketsize)) // Preserve b.tophash because the evacuation // state is maintained there. ptr := add(b, dataOffset) n := uintptr(t.bucketsize) - dataOffset memclrHasPointers(ptr, n) } }
if oldbucket == h.nevacuate { advanceEvacuationMark(h, t, newbit) } }
b := (*bmap)(add(h.oldbuckets, oldbucket*uintptr(t.bucketsize)))
（2）获取到老桶数组的长度 newbit；
1
newbit := h.noldbuckets()
（3）倘若当前桶已经完成了迁移，则无需处理；
（4）创建一个二元数组 xy，分别承载 x 区域和 y 区域（含义定义见 9.4 小节）中的新桶位置，用于接受来自老桶数组的迁移数组；只有在增量扩容的流程中，才存在 y 区域，因此才需要对 xy 中的 y 进行定义；
1 2 3 4 5 6 7 8 9 10 11 12 13
var xy [2]evacDst x := &xy[0] x.b = (*bmap)(add(h.buckets, oldbucket*uintptr(t.bucketsize))) x.k = add(unsafe.Pointer(x.b), dataOffset) x.e = add(x.k, bucketCnt*uintptr(t.keysize))
if !h.sameSizeGrow() { y := &xy[1] y.b = (*bmap)(add(h.buckets, (oldbucket+newbit)*uintptr(t.bucketsize))) y.k = add(unsafe.Pointer(y.b), dataOffset) y.e = add(y.k, bucketCnt*uintptr(t.keysize)) }
（5）开启两层 for 循环，外层遍历桶链表，内层遍历每个桶中的 key-value 对：
1 2 3 4 5 6 7
for ; b != nil; b = b.overflow(t) { k := add(unsafe.Pointer(b), dataOffset) e := add(k, bucketCnt*uintptr(t.keysize)) for i := 0; i < bucketCnt; i, k, e = i+1, add(k, uintptr(t.keysize)), add(e, uintptr(t.elemsize)) { // ... } }
top := b.tophash[i] if isEmpty(top) { b.tophash[i] = evacuatedEmpty continue }
（7）基于 9.4 的规则，寻找到迁移的目的桶；
1 2 3 4 5 6 7 8 9 10 11 12 13 14
const evacuatedX = 2 const evacuatedY = 3
k2 := k var useY uint8 if !h.sameSizeGrow() { hash := t.hasher(k2, uintptr(h.hash0)) if hash&newbit != 0 { useY = 1 } } b.tophash[i] = evacuatedX + useY // evacuatedX + 1 == evacuatedY dst := &xy[useY]
其中目的桶的类型定义如下：
1 2 3 4 5 6
type evacDst struct { b *bmap // current destination bucket i int// key/elem index into b k unsafe.Pointer // pointer to current key storage e unsafe.Pointer // pointer to current elem storage }
